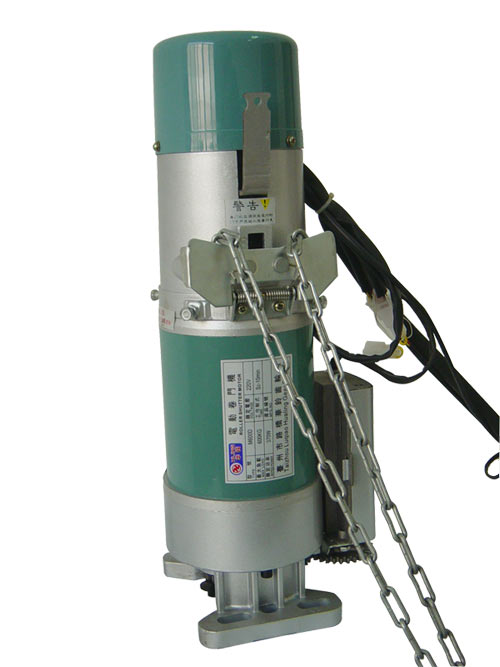

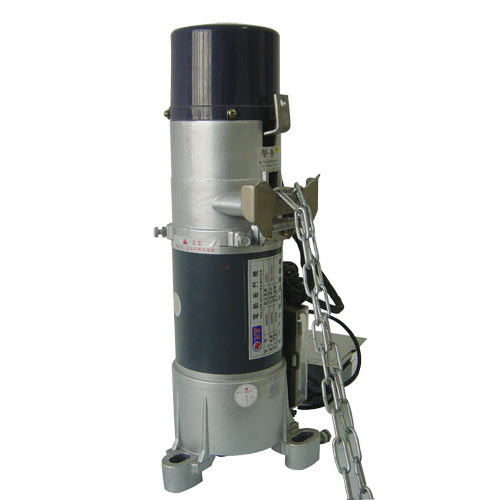

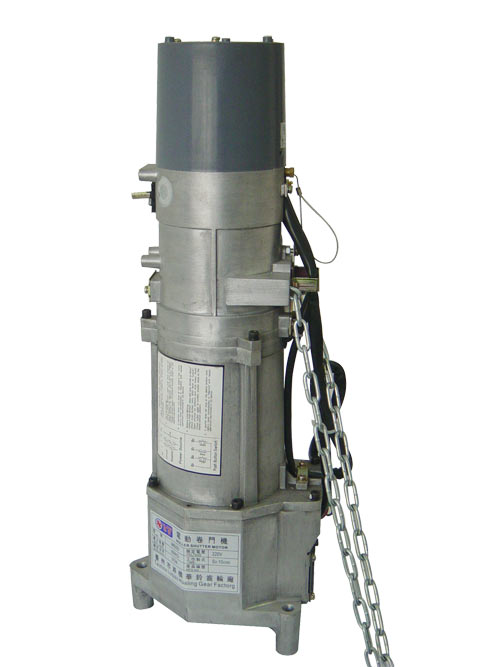

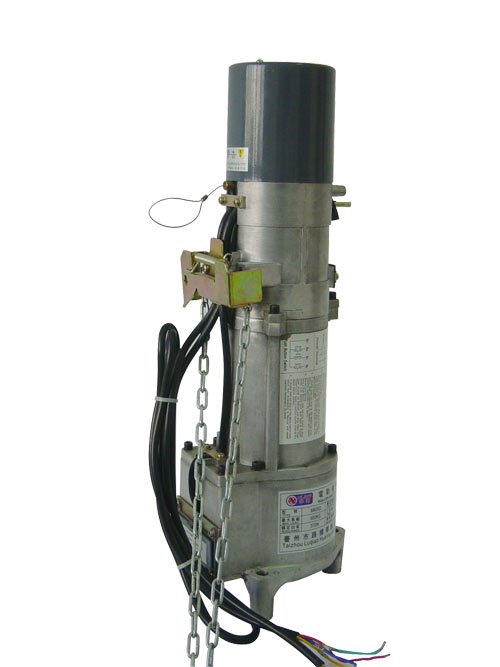

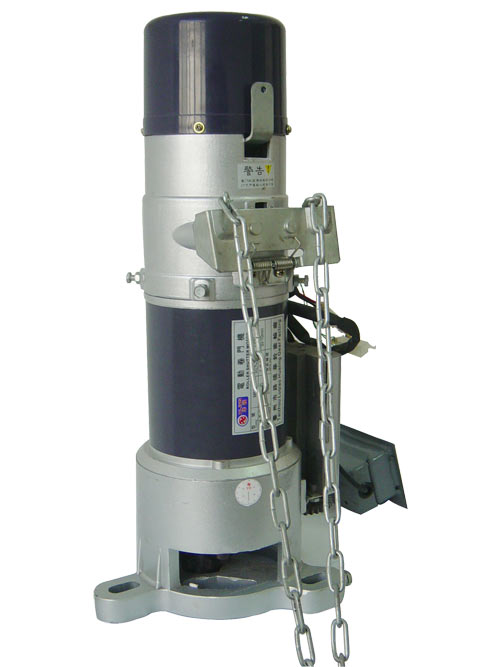

Roller shutter motor
|
1. Be suitable for various rolling shutter door.
2. With reliable, safe and steady performances and low noise.
3. With correct limiter, the maximum error is not over 1.5cm.
4. Transmitted through the chain, the chain fracture guard can be equipped. If the chain breaks by accident, the guard can stop the chain wheel immediately to protect the door from falling.
5. The rolling shutter door can be operated by remote control. |
 |
 |
 |
| ME300D-2 |
ME600D-7 |
M600D-6 |
 |
 |
 |
| M600D-2 |
M1000D |
M800D-B |
 |
|
|
| M800D-C |
|
|
| For more varieties and forms, please contact |
| Technical parameters |
Model |
Maximum payload Mass (kg) |
Rotate speed
(r/min) |
Voltage
(V) |
Rated power
(W) |
Rated current
(A) |
Rated torque (N.m) |
M200D |
200 |
5.8 |
220 |
150 |
1.2 |
140 |
M300D
M300S |
300 |
5.8 |
220
380 |
250 |
1.7
1 |
210 |
M500D
M500S |
500 |
4.8 |
220
380 |
370 |
2.5
1.3 |
400 |
M600D
M600S |
600 |
4.8 |
220
380 |
370 |
2.9
1.4 |
480 |
M800D
M800S |
800 |
4 |
220
380 |
550 |
3.6
1.9 |
650 |
M1000S |
1000 |
4 |
380 |
550 |
2.5 |
1000 |
M1300S |
1300 |
4 |
380 |
750 |
3.3 |
1300 |
M1500S |
1500 |
4 |
380 |
750 |
3.5 |
1500 |
|
|
